Where you see it

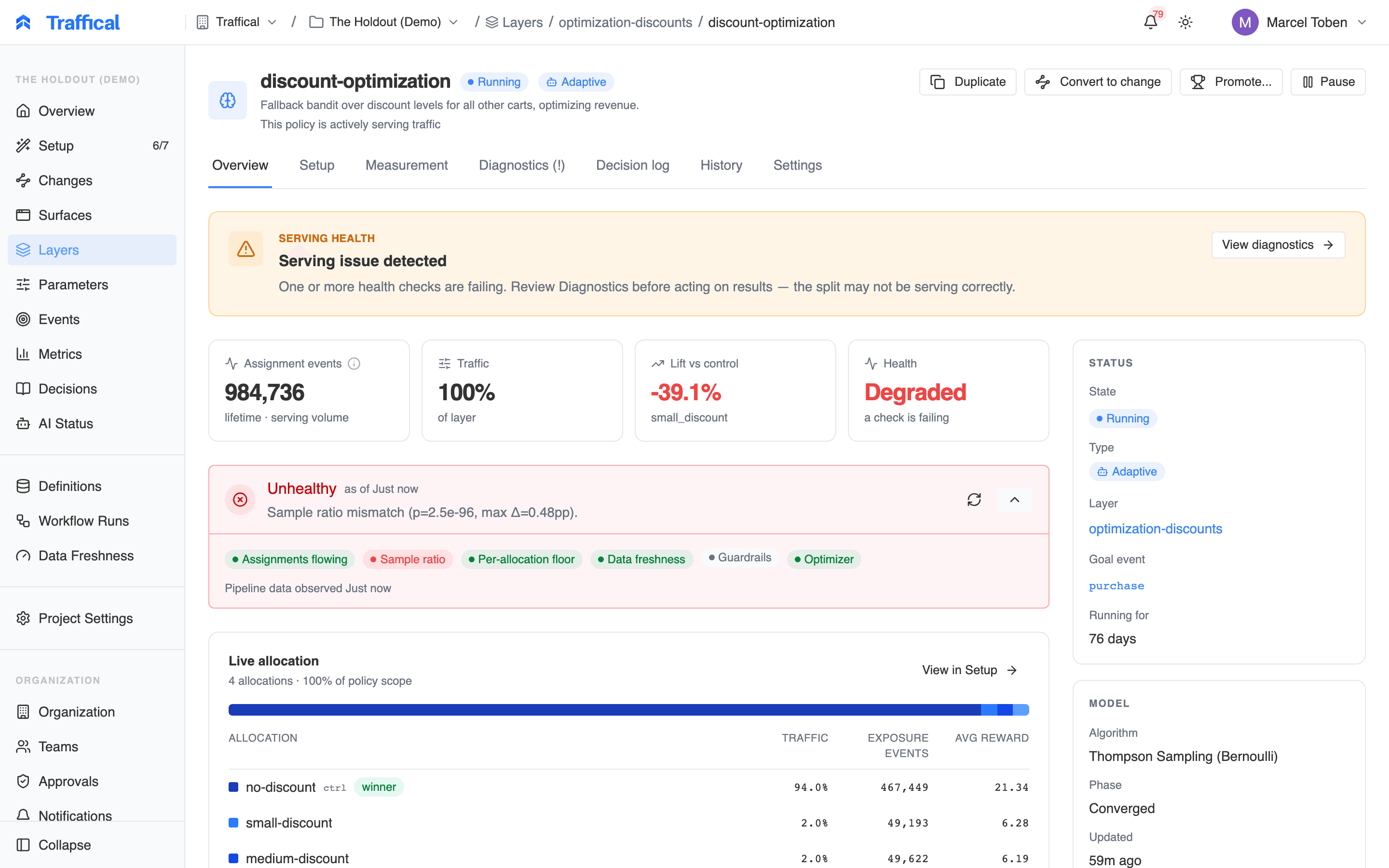

Open any policy detail page:- The Overview tab shows a compact health hero that auto-collapses when everything is green. Click any pill to see per-check detail.
- The Diagnostics tab (between Results and Decisions) shows the full assignments time-series, optional SRM history chart, and the transition log.
- The Allocations list footer shows the last exposure per allocation so you can spot dropouts at a glance.
draft state — the readiness checklist covers that
phase.
The six checks (v1)
| Check | Sources | Pass / Warn / Fail |
|---|---|---|
| Exposures flowing | Hourly per-allocation counts from the pipeline rollup | Pass: any in last 15 min. Warn: none in 1 h but some in 24 h. Fail: none in 24 h. |
| Sample ratio mismatch | Chi-squared on observed vs expected ratios | Pass: p ≥ 0.01. Warn: 0.001 ≤ p < 0.01. Fail: p < 0.001 and > 0.1 pp absolute deviation. |
| Per-allocation floor | Lifetime totals per allocation | Pass: all ≥ floor. Warn: some below floor. Fail: any at zero while others are healthy. |
| Data freshness | Pipeline rollup computedAt + watermarks | Pass: < 30 min. Warn: < 6 h. Fail: > 24 h. |
| Guardrail breach | Latest MetricSnapshot.allocations[].guardrailStatus | Pass: all passing. Warn: insufficient data. Fail: any failing. |
| Optimization eligible | Last optimization run + learningState.lastUpdated (adaptive policies only) | Pass: last run updated / no_change. Warn: insufficient_exposures / too_soon. Fail: errored, or no run in last 24 h. |
Adaptive SRM semantics
For adaptive policies, the SRM baseline is the current optimizer weighting (the latestallocationHistory entry). The check re-baselines on every
rebalance — a rebalance that legitimately changes the split will not trip the
check on its own. The side sheet shows which baseline was used for the
current evaluation.
Transition events
Every rollup compares the new health JSON against the previous JSON. Any check whose status changed (including pass → warn) writes aPolicyHealthEvent row.
Today these power the per-check Transitions list in the side sheet and
the timeline at the bottom of the Diagnostics tab. The same rows will drive
Slack / email / webhook fanout when notification channels ship — the schema
is in place and the events table already records who needs to be told what.
Endpoints
The dashboard reads three endpoints; the same endpoints are available via the API:GET /v1/policies/:policyId/health— derived report (six checks + overall)GET /v1/policies/:policyId/health/timeseries?window=24h|7d|30d|lifetime— per-allocation series + SRM snapshot for the chartGET /v1/policies/:policyId/health/events?since=...&limit=...— transition history
pending / empty payloads when the pipeline hasn’t run
yet, so the UI never errors during a policy’s first few minutes.
How it’s computed
- The warehouse-native pipeline emits a
PolicyHealthJsonper running policy as the last phase of every run (policy-health-rollup). The rollup runs three queries against_p_{policyId}_assignments(hourly 24 h, daily 30 d, lifetime) and computes chi-squared in process. - The control-plane orchestrator persists the JSON to R2 at
${orgId}/${projectId}/policy-health/${policyId}.jsonand compares it to the previous JSON to detect transitions, which are written to thepolicy_health_eventsD1 table in the same step. - On request, the control plane reads R2 + D1 and calls
computePolicyHealth— a pure function that maps the raw data into the six checks + an overall rollup. Identical inputs produce identical outputs, so the function is fully unit-testable.
